Measuring Tools - Rules, Gauges, Calipers, Dividers


How do I place an order?


Raytech Jewelry Makers Scale
[Ordering Help]

67.05.016 Raytech Jewelry Makers Scale $7.95
Quantity:
This scale covers the normal needs for jewelry making. Stainless steel with etched graduations. One side includes 6" scale graduated in 1/16" increments, 150mm scale graduated in mm and a sheet thickness gauge, the other includes a ring shank gauge (0 through 16) and a bracelet gauge (baby through man's large).

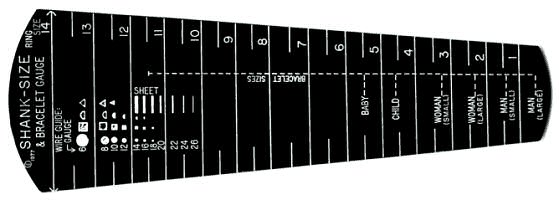

Shank Size and Bracelet Gauge
[Ordering Help]

67.05.012 Shank Size and Bracelet Gauge $6.95
Quantity:

A multi-purpose gauge for measuring flat stock for proper size ring and bracelet shanks. Ring sizes from 1 through 14, bracelet sizes from baby's through large men's sizes. Wire gauges from size 6 through 26, sheet gauges from 14 through 26. 8 3/4" long. Plastic construction.


6 Inch Rule Grobet
[Ordering Help]

67.05.018 6 Inch Rule Grobet $2.25
Quantity:

Stainless steel. Capacity 6", graduated by 1/32nds on one edge and 150mm graduated by mm on the other edge.


White Plastic 6 Inch Rule
[Ordering Help]

67.05.008 White Plastic 6 Inch Rule $1.80
Quantity:

Dixon No. 7 White Plastic Rule. Graduated in mm across the top half and in inches by 1/16" increments across the lower half. Very easy to read. 6" long x 1/2" wide.


White Plastic 7 Inch Rule
[Ordering Help]

67.05.007 White Plastic 7 Inch Rule $1.80
Quantity:

Dixon No. 14 White Plastic Rule. Graduated in mm across the top half and in inches by 1/16" increments across the lower half. Very easy to read. 7" long x 9/16" wide.


Stainless Steel Flexible 6 Inch Rule
[Ordering Help]

67.05.015 General Stainless Steel Flexible 6 Inch Rule $8.25
Quantity:

Features a non-glare finish. Capacity 6", graduated by 1/10ths and 1/100ths on one side and by 1/32nds and 1/64ths on the other side.


GFC Bur Gauge
[Ordering Help]

67.05.014 GFC Bur Gauge $6.75
Quantity:

A Swiss-made precision gauge of lightweight metal measures bur diameters in ISO sizes 005 to 045. 3 3/4" long.


General 0-36 Wire Gauge
[Ordering Help]

67.05.004 General 0-36 Wire Gauge $42.00
Quantity:

American standard for gauging wire and sheet sizes from 0-36 gauge. Decimal equivalents are provided on the reverse side. Made from heavy gauge hardened and tempered tool steel. 3 1/4" diameter. Made in USA.


Stone and Mounting Gauge
[Ordering Help]

67.05.010 Stone and Mounting Gauge $5.10
Quantity:

The holes in this gauge are used to measure stones, while the extensions around the perimeter are used to measure mountings. One side shows millimeters, the opposite side shows corresponding carat weights. 2mm through 11mm - 1/32 carat through 4 carats. Made from aluminum.


K&B Diamond and Stone Gauge
[Ordering Help]

67.05.011 K&B Diamond and Stone Gauge $8.95
Quantity:

Aluminum pocket gauge for measuring loose stones and settings ranging from .03 points to 4 carats (2mm through 11mm). A birthstone chart is printed on the back side.


Accurate Diamond Gauge
[Ordering Help]

67.05.013 Accurate Diamond Gauge $7.95
Quantity:

Folds to the size of a half dollar. Measures round and baguette stones from 1/100 to 2 carats. Made of aluminum for durable service.


Precision 10mm Gauge
[Ordering Help]

67.05.006 Precision 0-10mm Gauge $18.95
Quantity:

Precision type gauge measures metals and other hard materials from 0-10mm thick in .1mm increments.


GEMS 60mm Brass Calipers
[Ordering Help]

67.05.002 60mm Brass Calipers $8.95
Quantity:

60mm (2 1/2"") Brass Calipers with 1mm graduations and .1mm vernier scale. Made in Germany.


GEMS 80mm Brass Calipers
[Ordering Help]

67.05.001 80mm Brass Calipers $12.95
Quantity:

80mm (3 1/4") Brass Calipers with 1mm graduations and .1mm vernier scale. Made in Germany.


dialMax 150mm Dial Indicator
[Ordering Help]

67.05.003 Dial Max 150mm Dial Indicator $38.95
Quantity:

Swiss Precision dialMax 150mm Dial Indicator features non-marring glass fiber reinforced super-polyamid construction. Measures 0-150mm in .1mm increments. 10mm per single revolution of the dial. Measures outside, inside, depth and step. Made in Switzerland.


3 Inch Round Leg Divider
[Ordering Help]

67.05.005 Starret 3 Inch Round Leg Divider $56.95
Quantity:

Best quality available for critical measuring and scribing. Spring action. 3" Legs. Solid nut.


4 Inch Flat Leg Divider
[Ordering Help]

67.05.009 4 Inch Flat Leg Divider $9.95
Quantity:

For measuring distances between points and scribing circles or arcs. Spring action. 3 3/8" maximum opening. 4" Legs.
